Maintain Colors

fg_get_aes() gets aethestic data.frame for use in graphs. fg_get_aesstring() takes a column from the data.frame retrieved by fg_get_aes() fg_print_aes_list() prints names of aesthetics used internally in FinanceGraph functions. fg_display_colors() Shows a plot with current colors.

Usage

fg_get_aes(item = "", n_max = NA_integer_, asdataframe = FALSE)

fg_get_aesstring(
  item = "",
  n_max = NA_integer_,
  toget = "value",
  rtnifnotfound = FALSE
)

fg_display_colors(item = "")

fg_print_aes_list(grepstr = "")

Arguments

item

(Default: "") A grep string for categories desired.

n_max

Maximum number of rows or entries to return. Required for Rcolorbrewer color aesthetics

asdataframe

(Default: FALSE) Return dataframe of parameters regardless of type. (See details)

toget

Column in the aes data.frame to paste together as a string.

rtnifnotfound

Return NA_character_ if aes not found

grepstr

narrow list of internal aesthetics sets to functions from grepstr

Value

fg_get_aes() returns data.frame of aesthetics, including sorting columns, help strings, and values, fg_get_aesstring() returns a list with just the character values of the requested aesthetic. fg_print_aes_list() returns a markdown ready character vector of aesthetic names used in each function fg_display_colors() returns a ggplot2::ggplot() object with colors and associated names for an aesthetic name

See also

fgts_dygraph(), fg_update_aes()

Examples

# Data set, String
head(fg_get_aes("lines"),3)
#>    category variable   type  value  const   used                     helpstr
#>      <char>   <char> <char> <char> <char> <char>                      <char>
#> 1:    lines      D01  color  black           all Low cardinality line colors
#> 2:    lines      D02  color    red           all Low cardinality line colors
#> 3:    lines      D03  color   blue           all Low cardinality line colors
fg_get_aesstring("lines")
#>  [1] "black"     "red"       "blue"      "darkgreen" "orange"    "gray"
#>  [7] "seagreen"  "pink"      "cyan"      "grey20"    "grey40"    "grey60"
#> [13] "#cdcdff"   "#f2a7b5"
#  Gradient colors are stored in a `data.frame` as in a set of "Blue Greens"
fg_get_aes("espath_gp",asdataframe=TRUE)
#>     category variable       type    value  const          used
#>       <char>   <char>     <char>   <char> <char>        <char>
#> 1: espath_gp          colorrange seq,BuGn      7 fg_eventStudy
#>                  helpstr
#>                   <char>
#> 1: Brewer colors if used
# To get the actual colors, we need to know how many:
fg_get_aes("espath_gp",n_max=8)
#>     category variable   type   value  const
#>       <char>   <char> <char>  <char> <char>
#> 1: espath_gp       C1  color #005824   <NA>
#> 2: espath_gp       C2  color #137235   <NA>
#> 3: espath_gp       C3  color #248C46   <NA>
#> 4: espath_gp       C4  color #349E5F   <NA>
#> 5: espath_gp       C5  color #43AF79   <NA>
#> 6: espath_gp       C6  color #57B990   <NA>
#> 7: espath_gp       C7  color #6BC4A7   <NA>
#> 8: espath_gp       C8  color #85CFBA   <NA>

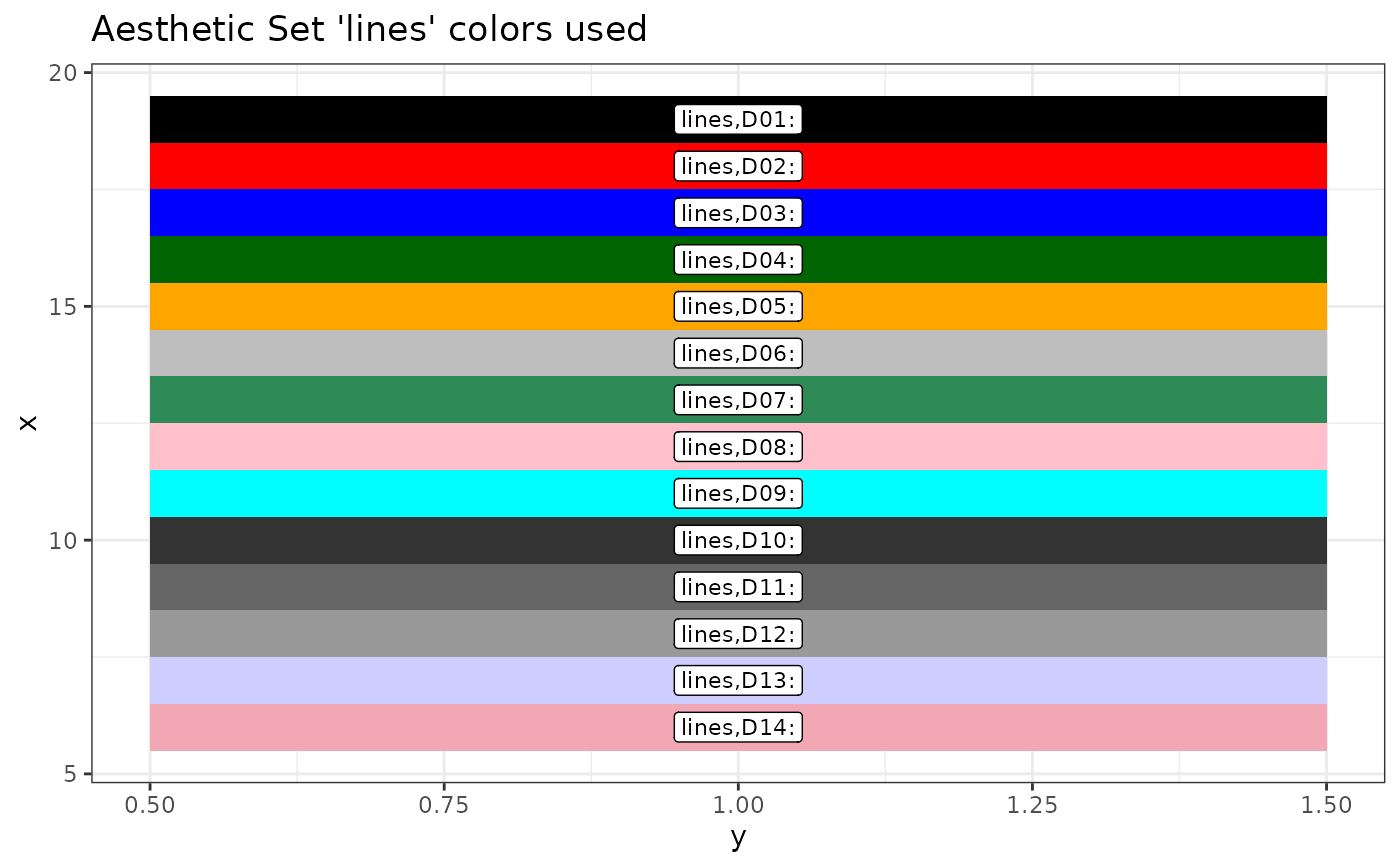

fg_display_colors("lines")
